Explosion-proof mark

Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db

   Protection level

IP68

   Thermal Imaging

Detector type

Vanadium oxide uncooled focal plane detector

Detector pixel

400*300

Cell size

17μm

Lens focal length

25mm

Temperature range

Low temperature mode: -40 ° C to 160 ° C, high temperature mode: -40 ° C to 550 ° C

Spectral range

7.5～13.5μm

Thermal sensitivity

≤40mK

Lens focal length

25mm

Field of view (h×v)

15.5°*11.6°

Maximum distance

(People: 1.8m*0.5m, detection, identification, identification) 1000 meters, 250 meters, 120 meters

Maximum distance

(Car: 2.3m*2.3m, detection, identification, identification) 3000 meters, 720 meters, 360 meters

Palette

Supports white heat, black heat, fusion, rainbow, golden autumn, noon, iron red, amber, jade, sunset, ice fire, oil painting, pomegranate, jade and other 14 kinds of pseudo color adjustable

Temperature range

Low temperature mode: -40 ° C to 160 ° C, high temperature mode: -40 ° C to 550 ° C

Temperature measurement error

Max（±2℃,±2%)

Temperature measurement method

"1. Support real-time point temperature measurement function;

2, support multi-preset point temperature measurement function, up to 300 temperature measurement preset points;

3, each preset point can be set: point temperature measurement: 8; area temperature measurement: 8; line temperature measurement: 8; support each preset point (point + area + line) up to 8 simultaneous temperature measurement

4, support temperature alarm function

5, support isotherm, color bar display function, support temperature correction function

6, temperature measurement unit Fahrenheit, Celsius can be set

7, support temperature real-time analysis, historical temperature information query function"

   Visible light

sensor type

1/1.9 inch cmos

Lens

4.5mm ~ 135mm; 30x motor zoom; 16x digital zoom

Minimum illumination

Color: 0.001Lux@F1.5 Black and white: 0.0001Lux@F1.5

Wide dynamic

120dB

Horizontal resolution

1000TV

Gain control

automatic / manual

3d noise reduction

stand by

2d noise reduction

stand by

Signal to noise ratio

≥55dB

White balance

Automatic / manual / tracking / outdoor / indoor / outdoor automatic / sodium lamp automatic / sodium lamp

Electronic shutter

1/1～1/30000s

Electronic image stabilization

stand by

Through fog function

stand by

BLC

stand by

Wide dynamic

stand by

Zoom speed

About 4s

Field of view

Level: 67.8°~2.77° (near focus to far focus)

Close-up distance

100mm~1000mm (near focus to far focus)

Optical zoom

30 times

Aperture value

F1.6～F4.4

Main stream resolution and frame rate

50Hz:25fps(1920×1080)、50fps(1920×1080)、25fps(1280×960)、50fps(1280×960)、25fps(1280×720)、50fps(1280×720) 60Hz:30fps(1920×1080)、60fps(1920×1080)、30fps(1280×960)、60fps(1280×960)、30fps(1280×720)、60fps(1280×720)

Substream resolution and frame rate

50Hz:25fps(704×576)、25fps(352×288) 60Hz:30fps(704×480)、30fps(352×240)

Third stream resolution and frame rate

50Hz:25fps(1920×1080)、25fps(1280×960)、25fps(1280×720)、25fps(704×576)、25fps(352×288) 60Hz:30fps(1920×1080)、30fps(1280×960)、30fps(1280×720)、30fps(704×480)、30fps(352×240）

   Video coding standard

H.265M/H.264H/H.264B/MJPEG

   Rotation range

Horizontal: 360° continuous rotation Vertical: ±90°

   Keying speed

Level: 0.1°/S ~ 40°/s, Vertical: 0.1°/s ~ 40°/s, PTZ positioning can be accurate to 0.1°

   Application programming interface

Open API that supports software integration, supports standard protocols

(Onvif, CGI, GB/T28181), support Dahua SDK and third-party management platform access

   Intelligent function

Visible light and thermal imaging support both line intrusion, area intrusion, item removal,

Various behavior detection such as item legacy; support multiple triggering rules linkage action; support

Target filtering; support thermal imaging fire detection alarm; support thermal imaging hotspot tracking;

   Alarm interface

2 in 2 out

   temperature range

-40℃~+70℃

   Power supply

Ac85v ~ 260v/dc24v 3a (optional)

   product material

304 stainless steel material (used in chemical and acid, alkali and other corrosive environments)

   Inlet hole specification

1 g3/4" entry hole

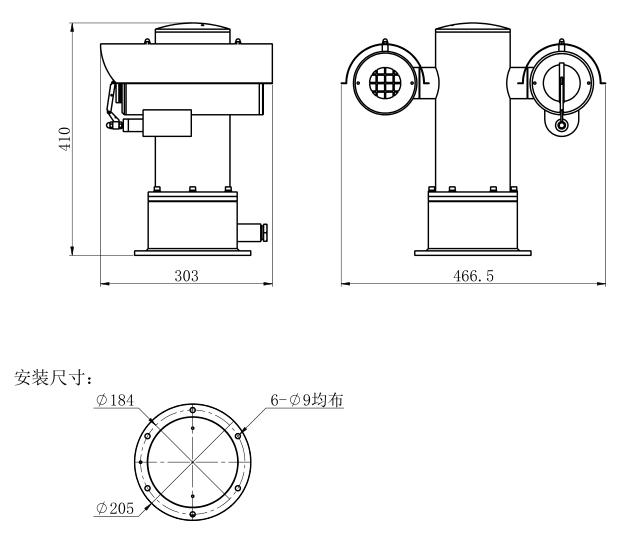

   Installation method

A variety of installation options are available depending on the application environment

   product weight

≤ 27kg
