model

HB-600-R19TZ15SF

Explosion-proof mark

Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db

Protection level

IP68

name

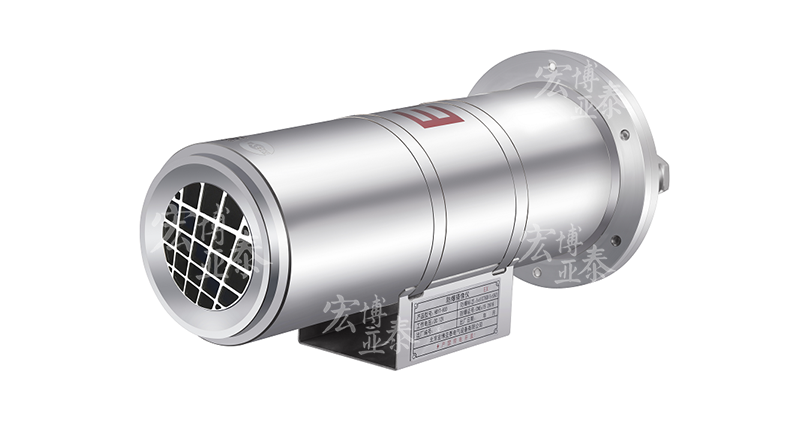

Explosion-proof temperature measurement thermal imaging network camera

sensor type

Vanadium oxide uncooled focal plane detector

Maximum image size

384×288

Pixel

17μm

Response band

8~14μm

Noise equivalent temperature difference (netd)

< 50mk(@25℃,F#=1.0)

Focal length (lens)

15mm

Spatial resolution

1.13

Detection distance (m)

(People: 1.8m*0.5m car: 1.4m*4.0m)

Ricking car: 1353 Detector: 441

Identification vehicle: 338 Identification person: 110

Identifying the car: 169 Identifying people: 55

Field of view

24.6°×19.8°

f value

1

Network protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,

DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour

Preview the number of videos simultaneously

Up to 20 channels

User rights

Up to 32 users, divided into 3 levels: administrator, operator, and regular user

Safe mode

Authorized username and password, mac address binding;

HTTPS encryption; IEEE 802.1x network access control, IP address filtering

Video compression standard

H.265/H.264 / MPEG4 / MJPEG

Audio compression standard

G .711u/G.711a/G.722.1/MP2L2/G726/AAC/PCM

Maximum image size

384×288

Video output

PAL/NTSC

Main stream image

50Hz:25fps(384×288)

60Hz:30fps(384×288)

Substream image

50Hz: 25fps (384 × 288) (thermal imaging)

60Hz: 30fps (384 × 288) (thermal imaging)

Focus

Manual

Palette

Black hot / white hot / iron red / rainbow and other pseudo-color (a total of 14 modes)

Fire detection

stand by

Abnormal temperature alarm

stand by

Temperature measurement function

Highest temperature cross positioning

Support 1 line temperature measurement 10 frame temperature measurement and 10 point temperature measurement

Temperature range: -20°C-550°C

Temperature measurement accuracy: ± 2 degrees (or ± 2% of range)

Smart video

Support network disconnection function to ensure video is not lost

Smart alarm

Support network cable break, ip address conflict, memory full, memory error, illegal access abnormality detection parallel alarm function

Smart detection

Area intrusion detection, cross-border detection, zone detection, zone detection, audio anomaly detection

Audio input

1 channel audio input (LINE_IN input, MIC input), audio peak value: 2-2.4V [pp], output impedance: 1KΩ ± 10%

Audio output

1 channel audio output, linear level, impedance: 600ω

Communication Interface

1 rj45 10m / 100m adaptive Ethernet port

Alarm input

1 way (optional)

Alarm Output

1 way (optional)

Video output

1.0V[pp] / 75Ω, PAL or NTSC, BNC head

Storage interface

Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (maximum support 64G), support manual recording/alarm recording

temperature range

-40℃~+60℃

Supply voltage

Dc12v 18w /ac220v (optional)

product material

304 stainless steel (chemical, acid and alkali, etc.)

Inlet hole specification

2 g3/4" entry holes

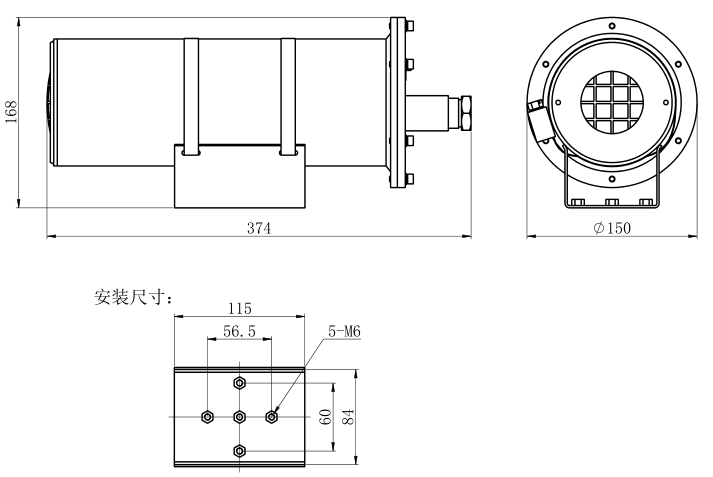

Installation method

Electric pan/tilt, universal joint, fixed bracket, column

product weight

≤ 6.0kg
