HB-6003Q-F7205X
[5X 2Magapxiel] Explosion-Proof IR star level HD smart dome camera
Use environment
It has IIa, IIb, IIc flammable gas, and the ignition temperature group is zone 1 and zone 2 of t1-t6 group. The flammable gas or the explosive mixture formed by steam and air is also applicable to the ignition temperature group. For the t1-t6 group of 20, 21, 22, including flammable dust mixtures. For example: petroleum, chemical, mining, military, pharmaceutical, oil depot, ship, drilling platform, gas station, fireworks production, grain processing Storage, etc.
Functional characteristics
● The highest level of explosion-proof certification for a variety of harsh and high-risk places
● Adopting star-level ultra-low illumination 2 million 1 / 2.8 inch cmos image sensor, low illumination effect, high image clarity
● Support Smart H.265/H.264H intelligent coding, ROI area enhancement, SVC adaptive coding, suitable for different bandwidth and storage environment
● Maximum infrared monitoring distance of 50 meters, support SmartIR, automatically adjust infrared far and near fill light and picture uniformity
● Support corridor mode, wide dynamic, 3d noise reduction, strong light suppression, backlight compensation, digital watermark, suitable for different monitoring environments
● Support a variety of anomaly detection, no sd card, insufficient sd card space, sd card error, network disconnection, ip conflict, illegal access, voltage detection
● Support a variety of intelligent functions, regional intrusion, smashing intrusion, item legacy, item moving, scene change, wander detection, personnel gathering, fast moving, illegal parking, virtual focus detection, face detection
● Aviation grade high-strength polycarbonate explosion-proof transparent dome, hardened, anti-fog treatment, anti-reflection, light transmittance up to 96%
Product number | HB-6003Q-F7205X |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
sensor type | 1/2.8 inch cmos |
Lens | 2.7mm ～ 13.5mm |
Minimum illumination | 0.002Lux (color mode); 0.0002Lux (black and white mode); 0Lux (infrared light on) |
Wide dynamic | 120dB |
Video coding standard | H.265;H.264;H.264B;H.264H;MJPEG |
Maximum resolution | 1920*1080 |
Video bit rate | H.264:16K ～ 10240Kbps H.265：8K ～ 6144Kbps |
Default stream | 4Mbps |
Alarm linkage | Support no sd card; sd card space is insufficient; sd card error; network disconnection; ip conflict; illegal access; motion detection; video occlusion; scene change; voltage detection; regional intrusion; squall line intrusion; item legacy; item moving; Face detection; personnel gathering; 徘徊 detection; rapid movement; parking detection; |
Intelligent function | Regional invasion; line intrusion; item legacy; item moving; scene change; 徘徊 detection; personnel gathering; fast moving; illegal parking; audio anomaly detection; face detection; |
Access standard | ONVIF;GB/T28181;CGI;PSIA |
Storage function | Support Micro SD card storage, maximum capacity 128GB NAS FTP |
Field of view | Level: 108.7°~ 28.7°; Vertical: 57.2°~ 16.2°; Diagonal: 130.5°~ 33° |
temperature range | -40℃~+60℃ |
Power supply | Dc12v 1.5a/poe (optional) |
product material | 304 stainless steel material (used in chemical and acid, alkali and other corrosive environments) |
Inlet hole specification | 1 20*1.5mm" cable entry hole |

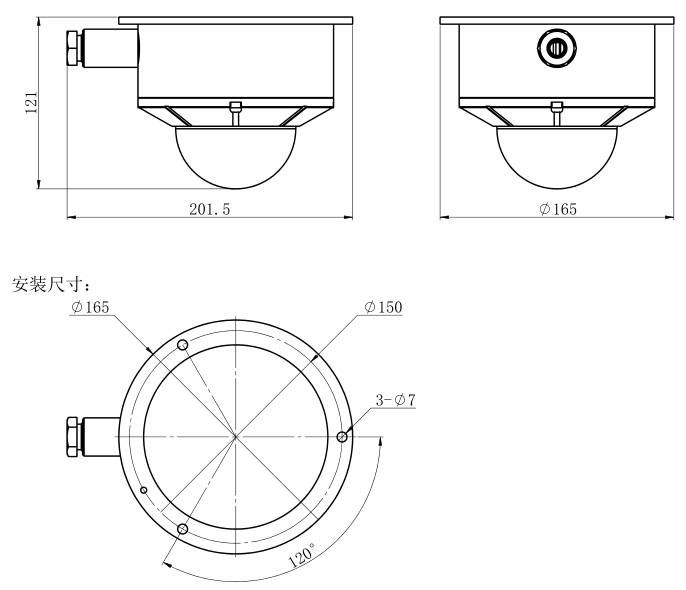

Installation method | Ceiling mounting, fixing bracket, wall mounting |
product weight | ≤3kg |
防爆设备控制箱
防爆设备控制箱
● 防爆等级 ：Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db
● 防护等级IP68
● 具备6个G-3/4”出线孔，也可根据客户要求定做
● 可安装电源、空开、光纤收发器、防雷模块、终端盒等其他相关设备
● 采用304不锈钢材料制造，适合强腐蚀性环境使用
● 可根据客户需要定制非标防爆控制箱
产品型号 | HB-EX08 |
防爆标志 | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ |
防护等级 | IP68 |
温度范围 | -40℃～ 60℃ |
产品材质 | 304 不锈钢材质（化工、酸碱等强腐蚀性环境使用） |
相对湿度 | 不大于 95%（+25°C） |
大气气压 | 80kpa ～ 106kpa |
恒温系统 | 可选配 |
外形尺寸 | 340mm*304mm*168( 把手高 24mm) |
内腔尺寸 | 252mm*252mm*116mm |
出线孔数量/规格 | 6 个 G3/4" 进线孔（可选配） |
安装方式 | 壁装、固定支架、立柱 \ 平台 |
产品重量 | ≤15kg |
防爆挠性软管
防爆挠性软管
● 304不锈钢材质，适用于强腐蚀性环境使用
● 用于连接防爆摄像仪与防爆箱等专用防爆设备
● 具有耐燃、耐腐蚀、耐水、耐老化、结构稳固，提高现场可靠性
产品型号 | 接口 | 内径 | 长度 |
HB-R18-1000 | G3/4"-G3/4" | 18mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-1000 | G1/2"-20*1.5mm | 13mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-700 | G3/4"-20*1.5mm | 13mm | 700 |
G1/2"-20*1.5mm | 13mm | 700 |
