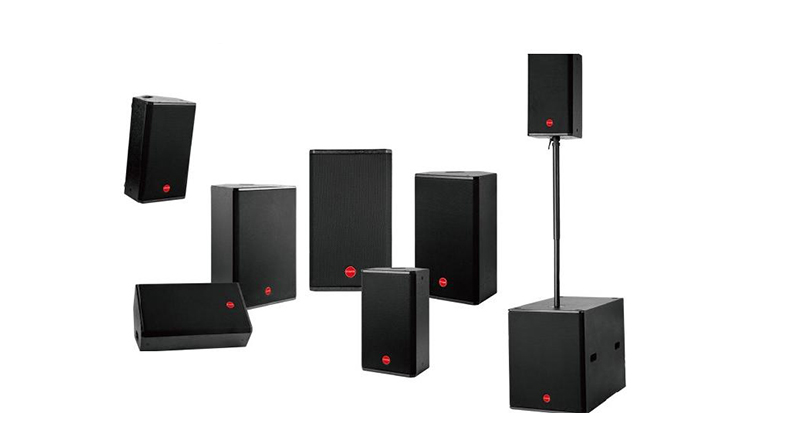

PDF Series
The PDF series speakers feature an optional imported paper cone woofer, powerful tweeter and woofer, combined with a multifunctional and compact cabinet design, delivering smooth, clear, rich, and sweet sound quality,The multi-angle cabinet design meets the multifunctional requirements of full-range main sound reinforcement/auxiliary sound reinforcement, stage monitoring (feedback), and is suitable for high-demand language sound reinforcement.
Model parameters | HB-PDF-8 | HB-PDF-10 | HB-PDF-12II | HB-PDF-15II | HB-PDF-18BII |
Low-frequency unit configuration | 1x8" | 1x10" | 1×21" | 1x15" | 1x18" |
High-frequency unit configuration | 1x1" | 1x1” | 1x1" | 1x1.4" | / |
speaker power | 200W(AES) 400W(PEAK) | 250W(AES) 500W(PEAK) | 400W(AES) 800W(PEAK) | 400W(AES) 800W(PEAK) | 800W(AES) 1600W(PEAK) |
Coverage angle (Horizontal/Vertical) | 90°×60° | 90°×60° | 90°×60° | 90°×60° | 90°×60° |
frequency response | 74H-20KHz | 57HZ-20KHz | 55HZ-20KHz | 46Hz-20KHz | 41Hz-250Hz |
rated impedance | 8Ω | 8Ω | 8Ω | 8Ω | 8Ω |
sensitivity | 96dB | 97dB | 98dB | 100dB | 98dB |
sound pressure level | ≥119dB | ≥121dB | ≥124dB | ≥126dB | ≥127dB |
WxDX HR寸mm | 250x247x415 | 300x282x498 | 360x318x598 | 430x416x670 | 500×800x606 |
weight | 12kg | 14.4kg | 21kg | 28kg | 39kg |
